+# Home Security System
+
+
+## Aim
+
+To design a Arduino Based Home Security System
+
+
+## Purpose
+
+This low-cost and effective system helps you to protect your house from thieves/intruders.
+
+
+## Components Required
+
+* Arduino UNO
+* Breadboard
+* Connecting Wires
+* LCD
+* Potentiometer
+* Keypad
+* PIR Sensor
+* Servo Motor
+* Buzzer
+* 1 Red LED
+* 1 Green LED
+* 4 Resisitors
+
+## Short Description
+
+In this project, we are using PIR Motion Sensor Module as an infraredsensor that generates electric charge when exposed in heat and sends a signal to Arduino. Accordingly the Arduino displays the status on LCD screen and start buzzing the buzzer and glows the LEDs.
+
+## Workflow of the Project
+
+- The servo motor acts like the lock
+- When ths system is not locked the green LED is turned on and a LOCK INACTIVE message is displayed on the LCD Screen.
+- When the system is locked by giving the default password through the keypad:
+  - Servo rotates
+  - Secured message is displayed on the LCD
+  - When any movement is detected by the PIR Sensor:
+    - Red LED is turned on
+    - Warning message is displayed on the LCD
+    - Buzzer is turned on
+- When again the default password is inputed :
+  - Servo rotates back to the origial position
+  - Lock is disarmed
+  - Message displayed on the LCD screen.
+
+
+## Setup instructions
+
+- Design and assemble the circuit as shown in the image.
+- Check the connections of all the components.
+- Upload the code provided.
+- Start the simulation
+
+## Output
+

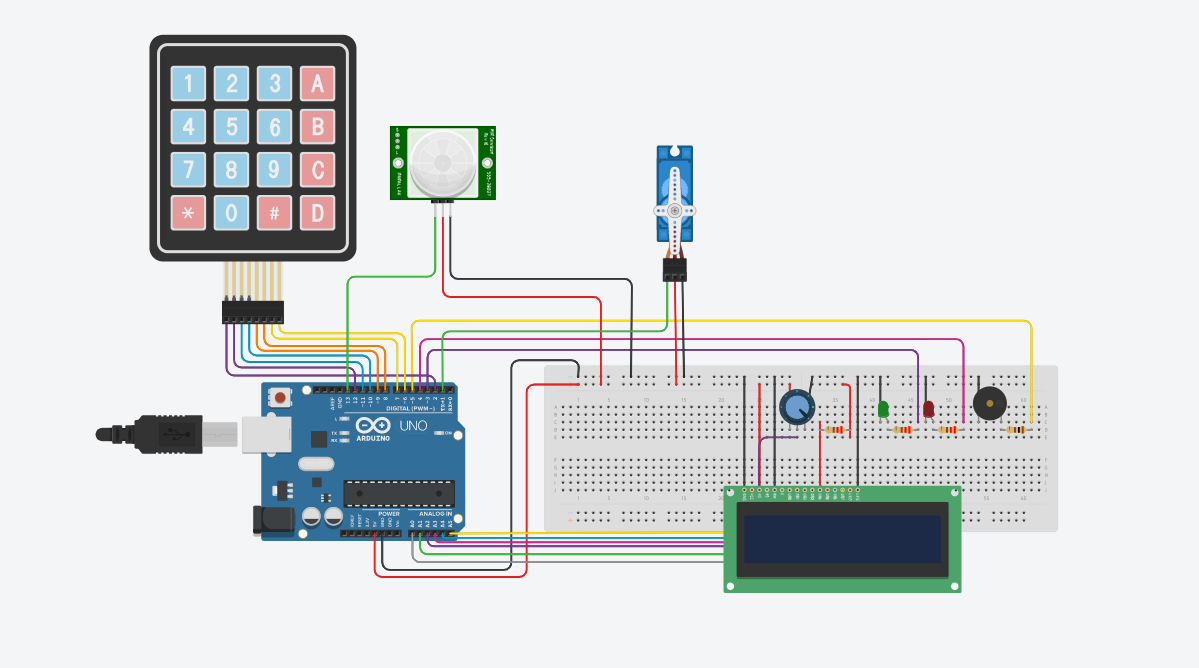

+![Circuit](https://user-images.githubusercontent.com/76259897/156227022-d60e95c8-9fc1-493c-b6eb-9fd0540929a6.png)
+
+
+[Simulation Video](./Images/home_security_system.mp4)
+
+
+
+

IOT(Internet of Things)/Intermediate/Home Security System/home_security_system.cpp

@@ -0,0 +1,118 @@
+#include <LiquidCrystal.h> // Include library for LCD.
+#include <Keypad.h> // Include keypad library.
+#include <Servo.h>
+
+const byte rows = 4;
+const byte cols = 4;
+
+// Define the keymap.
+char keys[rows][cols] = {
+  {'1','2','3','A'},
+  {'4','5','6','B'},
+  {'7','8','9','C'},
+  {'*','0','#','D'}
+};
+
+byte rowPins[rows] = {2,12,11,10}; // Keypad ROW0, ROW1, ROW2 and ROW3 are connected to these Arduino pins.
+byte colPins[cols] = {9,8,7,6}; // Keypad COL0, COL1, COL2 and COL3 are connected to these Arduino pins.
+
+Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, rows, cols); // Create the keypad.
+
+LiquidCrystal lcd(A0, A1, A2, A3, A4, A5);
+
+int sensor1 = 13;
+int state = 0; // State of the PIR sensor.
+bool motionDetected = false;
+bool locked = false; // Defines whether the program should listen for the data from sensor and respond to it or not.
+
+int ledGreen = 3;
+int ledRed = 4;
+
+Servo servo;
+
+int buzzer = 5;
+
+String passcode = "14"; // Default passcode
+String input = ""; // Input that will be read from keypad
+
+void setup() {
+  pinMode(sensor1, INPUT);
+  pinMode(ledGreen, OUTPUT);
+  pinMode(ledRed, OUTPUT);
+  pinMode(buzzer, OUTPUT);
+  servo.attach(1);
+  lcd.begin(16,2);
+}
+
+void loop() {
+  if(locked == false){ // Check whether system is not locked.
+    digitalWrite(ledGreen, LOW);
+    lcd.setCursor(0,0);
+	lcd.print("Lock Inactive");
+    servo.write(0);
+    char key = keypad.getKey(); // Read key from keypad.
+    if(key && key != '*'){ // Check whether key has been read from keypad and is not equal to "*" which is submit key.
+        input += key; // Read passcode from keypad and store it in input variable.
+    }
+    if(key == '*'){ // Check whteher "*" submit key has been pressed on keypad.
+      if(passcode == input){
+        locked = true; // Lock the system
+        input = ""; // Clear input variable.
+        lcd.clear();
+        lcd.setCursor(0,0);
+        lcd.print("Secured");
+        lcd.setCursor(0,1);
+        lcd.print(":D");
+        servo.write(90);
+        delay(3500);
+        lcd.clear();
+      }
+    }
+  }
+  else if(locked == true){ // Check whether system is locked.
+    char key = keypad.getKey(); // Read key from keypad.
+    if(key && key != '*'){ // Check whether key has been read from keypad
+        input += key; // Read passcode from keypad and store it in input variable.
+    }
+    if(key == '*'){ // Check whteher "*" submit key has been pressed on keypad.
+      if(passcode == input){
+        locked = false; // Unlock the system
+        input = "";
+        lcd.clear();
+        lcd.setCursor(0,0);
+        lcd.print("Disarmed");
+        lcd.setCursor(0,1);
+        lcd.print(":(");
+        delay(3500);
+        lcd.clear();
+      }
+    }
+    state = digitalRead(sensor1);
+    delay(100);
+    if(state == HIGH){
+      digitalWrite(ledGreen, LOW);
+      digitalWrite(ledRed, HIGH);
+      lcd.clear();
+      lcd.setCursor(0,0);
+      lcd.print("Movement Detected!");
+      lcd.setCursor(0,1);
+      lcd.print("Alert!!");
+      alarm();
+      delay(50);
+      lcd.clear();
+
+    }
+    else{
+      noTone(buzzer);
+      lcd.setCursor(0,0);
+      lcd.print("Lock Active");
+      digitalWrite(ledGreen, HIGH);
+      digitalWrite(ledRed, LOW);
+    }
+  }
+}
+void alarm(){
+    tone(buzzer, 500);
+
+
+}
