Simple Bike Computer1

doing something useful with BLTE as a geek

git clone https://github.com/deadfalkon/simple-bike-computer-presentation.git
pull requests are welcome!

#about me volcer@cbase @volkersfreunde mobile software about.me/falkorichter

#Content

  • What is BTLE
  • How does it work on Android
  • Simple Bike Computer
    • Hardware/setup - bike
    • Hardware - phone
  • How does it work on other platforms?
    • Swift iOS/MacOSX

#BTLE Bluetooth Low Energy®, a.k.a. Bluetooth Smart®

  • simple low energy data transfer
  • send simple bits of data fast
  • don´t sent alot of data
  • easy binding

#BTLE

​​​To help consumers identify compatibility and ensure connectivity with products and applications incorporating Bluetooth®​​ Core Specification version 4.0 (or higher), the Bluetooth SIG has developed the Bluetooth Smart and Bluetooth Smart Ready trademarks.2

#BTLE basics Services

Services are collections of characteristics and relationships to other services that encapsulate the behavior of part of a device.3

#BTLE basics

Characteristics

Characteristics are defined attribute types that contain a single logical value.4

#BTLE basics

Descriptors

"Descriptors are defined attributes that describe a characteristic value."5

#Why a bike computer?

##I ride my bike ##It´s not too expensive ##I want to know how far I go each week/month/year ##health foo #ftw

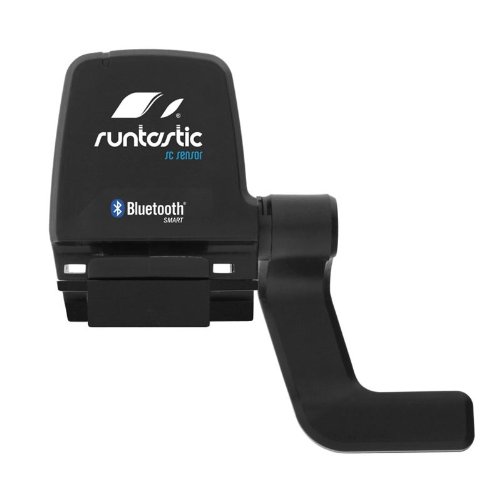

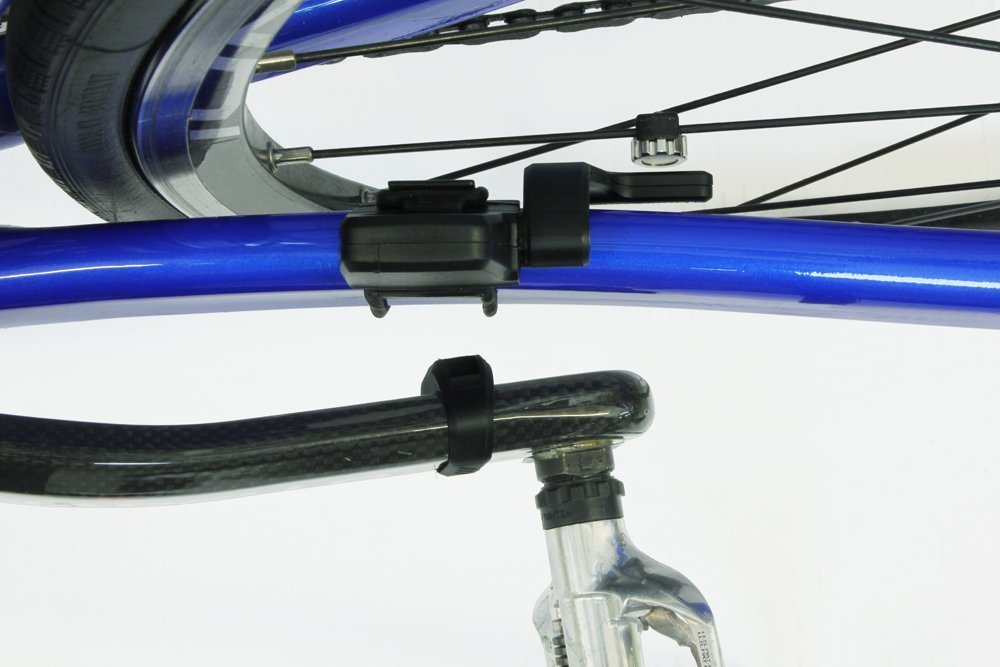

#Ingredients Speed and Cadence Sensor

inline fillinline fill inline fill

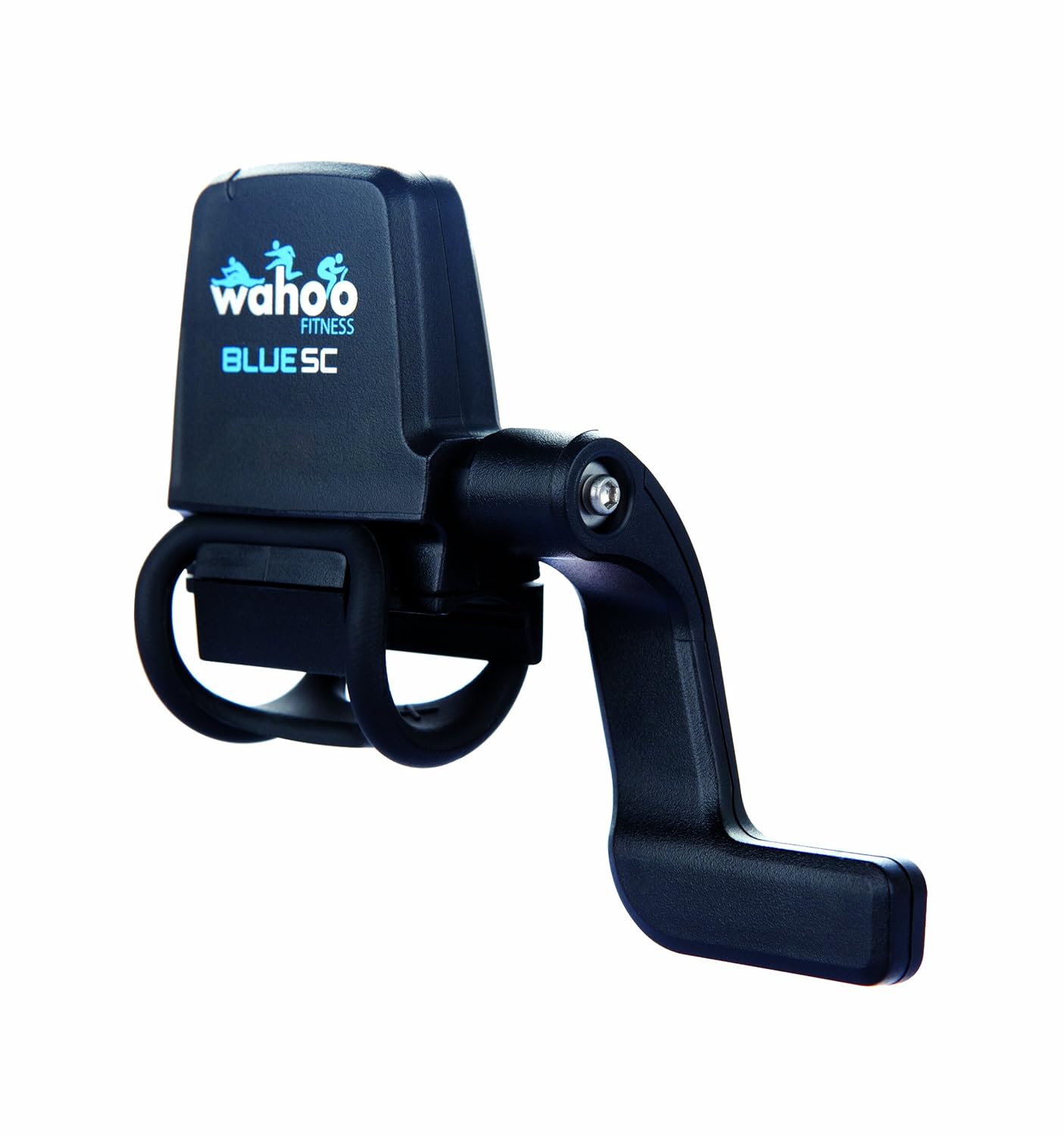

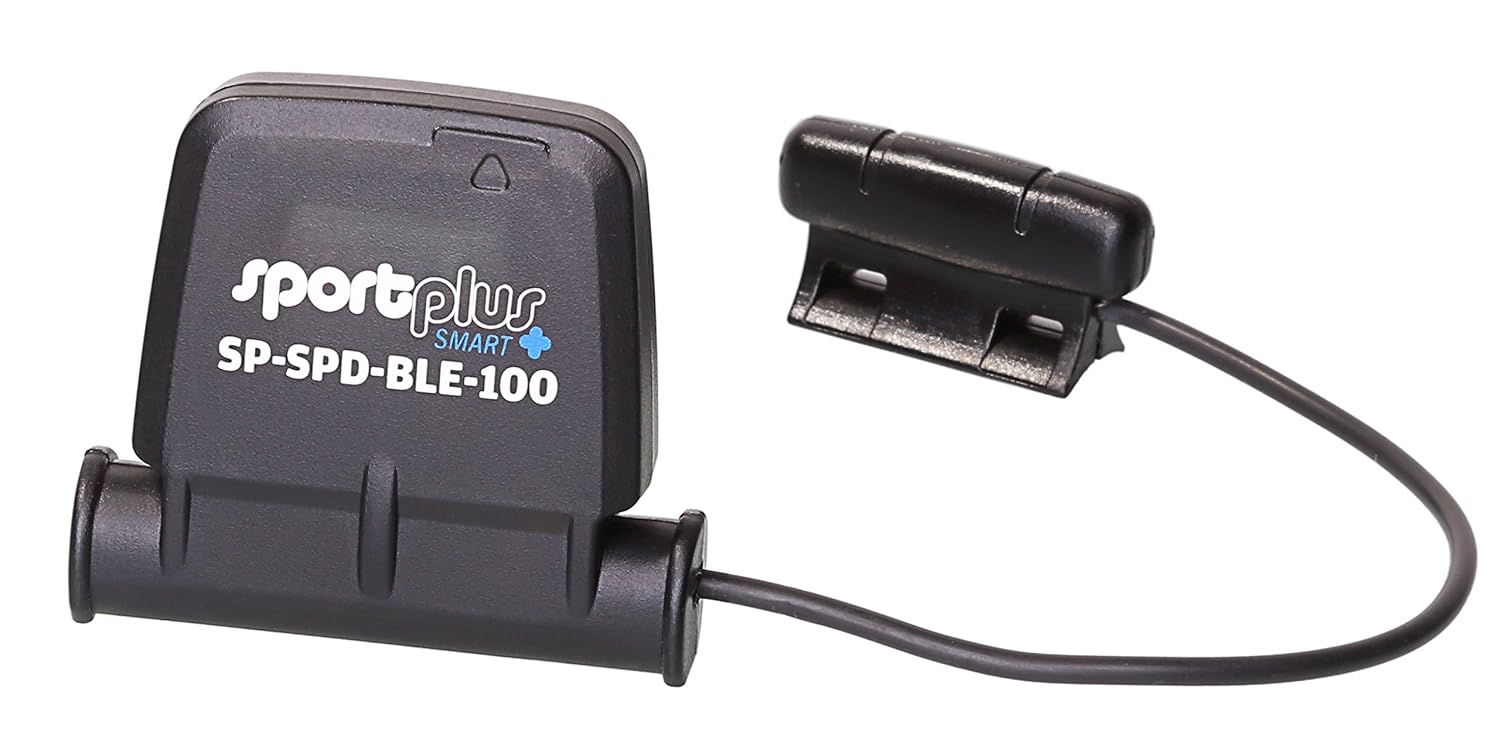

#Ingredients inline 33%inline 33%

#Ingredients Amazon: "Geschwindigkeit und Trittfrequenz" AliExpress: "Speed Cadence Sensor" (not yet tested, but: a lot cheaper, unlabeled, same build -> same internals(?))

No Nexus 4!!!

Remove the label o the device with nail polish remover

#Speed and Cadence

It´s all nicely documented.

#BTLE on Android

  • BluetoothManager
  • BluetoothGattCallback
    • onConnectionStateChange
    • onReadRemoteRssi
    • onServicesDiscovered
    • onCharacteristicChanged Connect.java

#BTLE on Android

  1. Subscribe to Notify Characteristic org.bluetooth.characteristic.csc_measurement
  2. extract values
  3. display them
  4. read RSSI (monitor the connection)

#Android: Scan and connect

final BluetoothAdapter adapter = bluetooth.getAdapter();
UUID[] serviceUUIDs = new UUID[]{CSC_SERVICE_UUID};
adapter.startLeScan(serviceUUIDs, new BluetoothAdapter.LeScanCallback() {
	@Override
	public void onLeScan(BluetoothDevice device, int rssi, byte[] scanRecord) {
		device.connectGatt(Connect.this, autoConnectCheckBox.isChecked(), bluetoothGattCallback);
	}
});

#Android: Scan for Services ######BluetoothGattCallback:

@Override
public void onConnectionStateChange(BluetoothGatt gatt, int status, int state) {
    super.onConnectionStateChange(gatt, status, state);
    switch (state) {
    	case BluetoothGatt.STATE_CONNECTED: {
			showText("STATE_CONNECTED", Style.INFO);
			setConnectedGatt(gatt);
			gatt.discoverServices();
			break;
		}
	}
}

#Android: Register for Updates ######Register for Updates of the org.bluetooth.characteristic.csc_measurement ######BluetoothGattCallback:

@Override
public void onServicesDiscovered(BluetoothGatt gatt, int status) {
	super.onServicesDiscovered(gatt, status);
    BluetoothGattCharacteristic valueCharacteristic = gatt.getService(CSC_SERVICE_UUID).getCharacteristic(CSC_CHARACTERISTIC_UUID);
    boolean notificationSet = gatt.setCharacteristicNotification(valueCharacteristic, true);
    BluetoothGattDescriptor descriptor = valueCharacteristic.getDescriptor(BTLE_NOTIFICATION_DESCRIPTOR_UUID);
    descriptor.setValue(BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE);
    boolean writeDescriptorSuccess = gatt.writeDescriptor(descriptor);
}

#Android: Monitor the RSSI ######BluetoothGattCallback:

@Override
public void onReadRemoteRssi(BluetoothGatt gatt, int rssi, int status) {
	super.onReadRemoteRssi(gatt, rssi, status);
	listener.updateRssiDisplay(rssi);
}
@Override
public void onCharacteristicChanged(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic) {
	super.onCharacteristicChanged(gatt, characteristic);
	gatt.readRemoteRssi();
}

######Also when scanning:

final BluetoothAdapter adapter = bluetooth.getAdapter();
UUID[] serviceUUIDs = new UUID[]{CSC_SERVICE_UUID};
adapter.startLeScan(serviceUUIDs, new BluetoothAdapter.LeScanCallback() {
	@Override
	public void onLeScan(BluetoothDevice device, int rssi, byte[] scanRecord) {
		listener.updateRssiDisplay(rssi);
	}
});

#Android

On Google's Android BLE stack there is a hard limit of 4 unique notification subscriptions during a single connection's lifetime. This is not SensorTag specific. To get around this you must disconnect, and then reconnect with up to 4 new notifications.6

#Android Read/Write Async interface:

  • one BluetoothGattCallback per device
    • async execution of commands with callbacks onCharacteristicRead(BluetoothGatt gatt, BluetoothGattCharacteristic characteristic, int status)

#Android Read and Write, read/write multiple values

  • read, write, read tricky since the BluetoothGattCharacteristic contains the value
    • Helper class needed
    • BluetoothGattCommand and BluetoothGattCommandQueue

#Android Read and Write, read/write multiple values ######still work in progress7

final BluetoothAdapter adapter = bluetooth.getAdapter();
UUID[] serviceUUIDs = new UUID[]{CSC_SERVICE_UUID};

final GattCommandServiceGroup service = new GattCommandServiceGroup(BTUUID.Service.device_information);
service.addCharacteristicOperation(GattCommand.CommandOperation.OPERATION_READ, BTUUID.Characteristic.manufacturer_name_string);
service.addCharacteristicOperation(GattCommand.CommandOperation.OPERATION_READ, BTUUID.Characteristic.model_number_string);
service.addCharacteristicOperation(GattCommand.CommandOperation.OPERATION_READ, BTUUID.Characteristic.firmware_revision_string);
service.addCharacteristicOperation(GattCommand.CommandOperation.OPERATION_READ, BTUUID.Characteristic.hardware_revision_string);
service.addCharacteristicOperation(GattCommand.CommandOperation.OPERATION_READ, BTUUID.Characteristic.serial_number_string);
final GattCommandQueue queue = new GattCommandQueue();
queue.add(service);
queue.setGattCommandQueueCallback(<your callback>)
queue.executeWhenConnected();
[...]

#Android Wearables Of course all this works directly on Android Wear

  • minimal sample included.
  • same code
  • no host app needed
  • wear app => main app, phone app not needed

#Android

Meet the AndroidSimpleBikeComputer

git clone https://github.com/deadfalkon/android-simple-bike-computer.git
git clone https://github.com/deadfalkon/simple-bike-computer-presentation.git

inline 20%inline 20%

#Swift

#wtf is swift?

everything is a little easier iOS & MacOSX

#Swift become a peripheral:89

func startBroadcasting(){
    heartRateService.characteristics = [hearRateChracteristic]
    infoService.characteristics = [infoNameCharacteristics]

    peripheralManager.addService(infoService)
    peripheralManager.addService(heartRateService)
    var advertisementData = [
        CBAdvertisementDataServiceUUIDsKey:[infoService.UUID, heartRateService.UUID],
        CBAdvertisementDataLocalNameKey : "mac of falko"
    ]
    peripheralManager.startAdvertising(advertisementData)
}
[...]

#Swift get notified :1 10

let CSC_SERVICE = CBUUID(string: "1816")
let CSC_MEASUREMENT  = CBUUID(string: "2A5B")

func centralManagerDidUpdateState(central: CBCentralManager!){
    switch (central.state){
    case .PoweredOn:
        central.scanForPeripheralsWithServices([CSC_SERVICE], options: nil)
    default:
        println("not powered on")
    }
}

#Swift get notified :2

func centralManager(central: CBCentralManager!, didConnectPeripheral peripheral: CBPeripheral!){
    peripheral.discoverServices([CSC_SERVICE])
}

#Swift get notified :3

func peripheral(peripheral: CBPeripheral!, didDiscoverServices error: NSError!){
    if(error != nil) {
        for service in peripheral.services {
            if service.UUID == CSC_SERVICE {
                peripheral.discoverCharacteristics([CSC_MEASUREMENT], forService: service as CBService)
            }
        }
    }
}

#Swift get notified :4

func peripheral(peripheral: CBPeripheral!, didDiscoverCharacteristicsForService service: CBService!, error: NSError!) {
    if(error != nil){
        if service.UUID == CSC_SERVICE {
            for characteristic in service.characteristics{
                if (characteristic as CBCharacteristic).UUID == CSC_MEASUREMENT {
                    peripheral.setNotifyValue(true, forCharacteristic: characteristic as CBCharacteristic);
                }
            }
        }
    }
}

#Swift get notified :5

func peripheral(peripheral: CBPeripheral!, didUpdateValueForCharacteristic characteristic: CBCharacteristic!, error: NSError!) {
	//do your thing
}
