Finding Lane Lines on the Road
The goals / steps of this project are the following:
- Make a pipeline that finds lane lines on the road
- Reflect on your work in a written report
My pipeline consists of 6 steps after the original image was imported.
First, I converted the images to grayscale, this later allows using
the Canny edge detection out-of-the-box.
Second the image is blurred (removing high-frequency artifacts), doing this will avoid mislabeling "noise" as edges later on. Lane lines are fairly thick and should be rather unaffected by this.
Third, Canny edge detection was used to detect the edges, with a threshold between 50-200.
Forth the area of interest was masked off, to avoid seeing cars in the distance and to ignore neighbouring lane lines. If I would have put more effort into ignoring horizontal lines and classifying the closest left and right lane lines, this would probably not have been required, but the result was good enough with simple static masking on the example inputs.
Fifth, the Hough transform was used to extract lines out of the edges detected previously.
Since the lane lines were fairly wide, this outputs double or even triple lines sometimes.
Sixth, I modified draw_lines() to first, depending on slope, sort lines into left or right "bins" of lane lines.
For each one, I used the numpy.polyfit with degree set to one to extract the left/right lane equations.
With some basic algebra, I used the line equations to draw lanes from the bottom
of the image to 60% from the top of the image.
Below are two example videos (links to youtube):

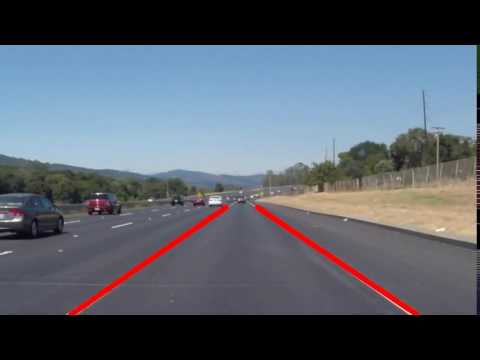

Solid White Right

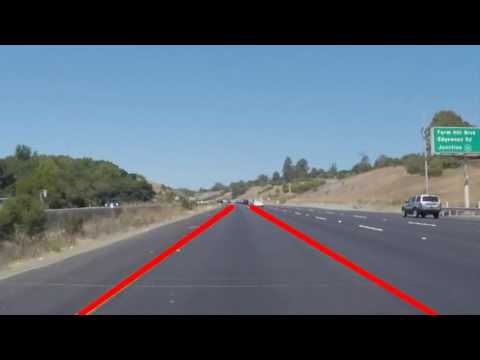

Solid Yellow Left
While switching lanes, three lane lines are relevant (left, center, right), the current pipeline is hardcoded to two.
With different lighting, contrast and reflections (shadows, sunny/cloudy, rain e.g.) the now fixed thresholds would need adjustments.
A fixed horizon isn't realistic, it should detected dynamically based on the "flow" of image parts in movie. The "origin" is where the horizon is, at least when driving straight on a flat road.
With turns of the road, lane lines are curved and both are going either left or right if the curve is sharp. The 1-degree line equation cannot express this.
For the last step, I first considered using k-means clustering to classify each line's equation into a number of lane line "clusters". By checking for deviations with different target counts of clusters, I would be able to see how many lines were actually detected. The most vertical ones to the left and right of the center would be the ones sought. By averaging each cluster's line equations, I should get a really good estimation of each line's equation without noise from surrounding lane lines or other "garbage". This seemed too complex though (input would have to be "whitened" and then "de-whitened etc etc) and given the limited amount of time, I skipped implementing this.
I noticed the example movies' output lanes moved around very smoothly, so there were probably some moving averaging used, but I skipped that as well. Using the per-frame output better shows how the algorithm actually performs I believe, instead of covering up imperfections.
Lane lines could be identified by more than just edges forming lines, by matching the whole lane line shape and color (perhaps through convolution with a set of lane-line-like kernels), or even a neural network trained to detect lane lines.
Instead of using fixed threshold levels, they could probably be determined dynamically based on a histogram of road surface colors, I'd guess there are typically clusters of plain asphalt and lane lines in the region you'd expect/hope there's a road.
The software as written can be cleaned up quite a bit, e.g. there's some repetition instead of abstraction and there is image-writing and display code commented out which is usedful for debugging and further finetuning.
