Masm2c

Masm2c is a tool designed to translate 16-bit x86 assembly code (often used in DOS games) to C and SDL, enabling easier porting, analysis, and modification.

It is a Source-to-source translator that generates fake-assembler instructions which can be compiled with a C compiler and executed.

(There is no working decompiler for 16 bit DOS code yet, because of DOS segmentation model, etc)

Example results:

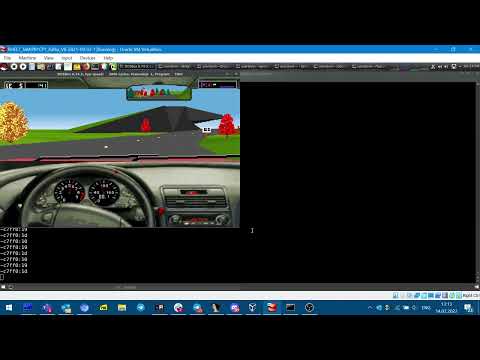

Test drive 3

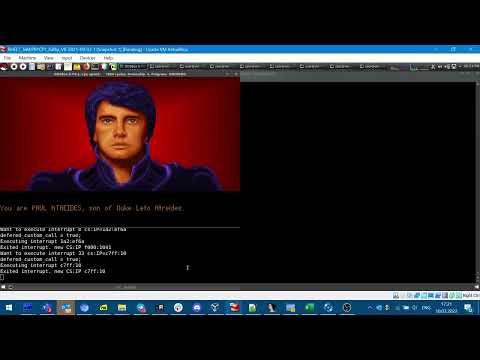

Cryo Dune

The following assembler example:

_DATA   segment use16 word public 'DATA'
_msg    db 'Hello World!',10,13,'$'

_DATA   ends

_TEXT   segment use16 word public 'CODE'
  assume  cs:_TEXT,ds:_DATA
start proc near

sti                             ; Set The Interrupt Flag
cld                             ; Clear The Direction Flag
push _data
pop ds
mov ah,9                        ; AH=09h - Print DOS Message
mov dx,offset _msg             ; DS:EDX -> $ Terminated String
int 21h                         ; DOS INT 21h

mov ax,4c00h                    ; AH=4Ch - Exit To DOS
int 21h                       ; DOS INT 21h
start endp

_TEXT   ends
end start

Converts to a compilable and working C++ code:

start:
    R(STI); // 12 sti
    R(CLD); // 13 cld
    R(PUSH(seg_offset(_data))); // 14 push _data
    R(POP(ds)); // 15 pop ds
    R(ah = 9;); // 16 mov ah,9
    R(dx = offset(_data,_msg););    // 17 mov dx,offset _msg
    R(_INT(0x21));  // 18 int 21h
    R(ax = 0x4c00;);    // 20 mov ax,4c00h
    R(_INT(0x21));  // 21 int 21h

struct Memory m = {
{0}, // padding
{0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0}, // segment _data
{'H','e','l','l','o',' ','W','o','r','l','d','!','\n','\r','$'}, // _msg
...

The translation flow:

Diagram

It can make IDA Pro output assembler listing to be recompilable by instrumented executing on emulator and compare each instruciton with emulated libdosbox.

Features:

  • 386 instructions (except FPU) are supported (well tested with QEMU tests). x86 flags: Carry, Zero, Sign, Overflow are supported
  • Segment memory model and 16bit offsets
  • Internal SDL target: some BIOS/DOS Int 10h, 21h interrupts, DOS memory manager, and stack emulation CGA text mode is supported using Curses (PDcurses or NCurses). VGA 320x200x256 support (partial)
  • Libdosbox target: Full interrupts, hardware support.
  • structures support
  • parser is based on Masm EBNF grammar
  • segment can be merged same as Masm do it during linking: Many .asm sources can be converted individually and linked together using modern linker

Prerequisites:

  • Python 3.9 or later: Ensure you have Python installed on your system.
  • Assembly Source Code: You'll need the assembly code you want to translate. Masm2c supports MASM 6 syntax and IDA Pro's .lst files. (your code should be compilable with uasm(jwasm)/masm6, link5/tlink and work under DOS.)

Installation:

Install Dependencies: Use pip to install the required libraries:

pip install -r requirements.txt

This will install lark, jsonpickle, and other necessary packages.

Usage:

  1. Basic Translation: To translate an assembly file (e.g., game.asm) to C, use the masm2c.py script:

    python masm2c.py game.asm


    This generates C++ source files (e.g., game.cpp and game.h) and a .seg file containing segment information.

  2. Merging Procedures:

    • Masm2c provides different options for handling procedure merging, it helps to get working code in case there are jumps between procedures.
    • It controlled by the -m or --mergeprocs flag:
      • separate (default): Procedures are kept separate, and jumps between them use a global dispatch function.
      • persegment: Procedures within the same segment are merged.
      • single: All procedures are merged into a single function.
  3. Specifying Load Segment:

    • It helps to temporary emulate a specific code memory location to speedup conversion (e.g., DOSBox loading an .exe at 0x1a2), use the -lo or --loadsegment flag to specify the segment:
    python masm2c.py -lo 0x1a2 game.asm

    • For .com files loaded by DOSBox, use the -AT flag.
  4. Generating Globals Listing:

    • To generate a file with a listing of all global variables, labels, and procedures, use the -FL or --list flag:

      python masm2c.py -FL game.asm

      • This creates a file named game.list containing the information.

Output Files:

  • C++ Source Files (.cpp and .h): These files contain the translated C code equivalent to your assembly source.
  • Segment File (.seg): This file stores information about the segments in your assembly code. It can be used for merging data segments from multiple input files.

Tips:

  • For better disassembly and translation, consider using tools like libDOSBox to collect runtime information (e.g., segment register values, memory access patterns).
  • Masm2c scripts can help convert libDOSBox traces into annotations for disassemblers like IDA Pro.

(3rd-party code used from: ASM2C (x86 instruction emulation), tasm-recover (from SCUMMVM project; highly modified), QEMU x86 instructions test suit, FreeDOS memory manager.)

License: GPL2+

TODO:

  • full macros support
  • add FPU instructions support (may use linux 387 emulator)

Another use case: you can compile output of masm2c (C code) for 32 bit plarform with optimization; and decompile to get cleaner C code without dead code like x86 flags handling.

Assembler source code for Stunts game

https://github.com/xor2003/restunts

Assembler source code for Tornado flight sim https://github.com/xor2003/tornado-dos-flightsim

See list of DOS games with debug information http://bringerp.free.fr/forum/viewtopic.php?f=1&t=128

IDA Pro Free you can find here [https://www.scummvm.org/news/20180331/

](https://www.scummvm.org/news/20180331/)

Inertia Player 1.22 source code

Famous reverse engenerred MOD, S3M player. Currently platform DOS (ASM), SDL2 © There is disassembled source code for MASM, Nasm, C which can be built and running

TODO: finish sound support on SDL, finish porting (keyboard, graphics mode,...)

Building Inertia for SDL from source:

  1. get PDCurses or other curses library+headers, SDL2, mingw32 + a lot of luck
  2. build_mingw.bat
  3. execute: iplay_m_.exe HACKER4.S3M

Or just get prebuilt from release page
