xprofiler

The xprofiler tool aims to simplify profiling experience for XLA workloads. It provides an abstraction over profile sessions and manages xprof hosting experience. This includes allowing users to create and manage VM instances that are preprovisioned with TensorBoard and latest profiling tools.

For more information about profiling with xprof, please see the xprof documentation.

Quickstart

These steps can be setup on user's workstation/cloudtop.

Install Dependencies

xprofiler relies on using gcloud.

The first step is to follow the documentation to install.

Running the initial gcloud setup will ensure things like your default project ID are set.

gcloud init
gcloud auth login

Setup cloud-diagnostic-xprof Package

Use a virtual environment (as best practice).

python3 -m venv venv
source venv/bin/activate

# Install package
pip install cloud-diagnostics-xprof

# Confirm installed with pip
pip show cloud-diagnostics-xprof

Name: cloud-diagnostics-xprof
Version: 0.0.9
Summary: Abstraction over profile session locations and infrastructure running the analysis.
Home-page: https://github.com/AI-Hypercomputer/cloud-diagnostics-xprof
Author: Author-email: Hypercompute Diagon <[email protected]>

Permissions

xprofiler relies on project level IAM permissions.

• Users must have Compute User or Editor permissions on the project.
• xprofiler uses default compute user service account to access trace files from GCS bucket. <project-number>[email protected] should have Storage Object User access on the target bucket.

GCS Path Recommendations

xprofiler follows a path pattern to identify different profile sessions stored in a bucket. This allows visualization of multiple profiling sessions using the same xprofiler instance.

• For xprofiler capture command, use gs://<bucket-name>/<run-name> pattern.
• All files will be stored in gs://<bucket-name>/<run-name>/tensorboard/plugin/profile/<session_id>.
• For xprofiler create command, use gs://<bucket-name>/<run-name>/tensorboard pattern.

Examples of proper and improper GCS paths:

# Proper path (note forward slash at end is optional)
gs://my-bucket/main_directory/sub-a/sub-b/

# Proper path
gs://my_other_bucket/main_directory/sub-1/sub-2

# Improper path: does not start with gs://
my_other_bucket/main_directory/sub-1/sub-2

Create xprofiler Instance

To create a xprofiler instance, you must provide a path to a GCS bucket and zone. Project information will be retrieved from gcloud config.

ZONE="<some zone>"
GCS_PATH="gs://<some-bucket>/<some-run>/tensorboard"

xprofiler create -z $ZONE -l $GCS_PATH

When the command completes, you will see it return information about the instance created, similar to below:

Waiting for instance to be created. It can take a few minutes.

Instance for gs://<some-bucket>/<some-run> has been created.
You can access it via following,
1. xprofiler connect -z <some zone> -l gs://<some-bucket>/<some-run> -m ssh
2. [Experimental (supports smaller files, < 200mb)] https://<id>-dot-us-<region>.notebooks.googleusercontent.com.
Instance is hosted at xprof-97db0ee6-93f6-46d4-b4c4-6d024b34a99f VM.

This will create a VM instance with xprofiler packages installed. The setup can take up to a few minutes. The link above is shareable with anyone with IAM
permissions.

By default, xprofiler instances will be hosted on a c4-highmem machine. Users can also specify a machine type of their choice using the -m flag.

During create, Users will be prompted if they would like to create a second instance for the same gcs path. Pressing anything but Y/y will exit the program.

$ xprofiler create -z <zone> -l gs://<some-bucket>/<some-run>/tensorboard

Instance for gs://<some-bucket>/<some-run>/tensorboard already exists.

Log_Directory                              URL                                                                  Name                                        Zone
-----------------------------------------  -------------------------------------------------------------------  ------------------------------------------  -------
gs://<some-bucket>/<some-run>/tensorboard  https://<id>-dot-us-<region>.notebooks.googleusercontent.com         xprof-97db0ee6-93f6-46d4-b4c4-6d024b34a99f  <zone>


Do you want to continue to create another instance with the same log directory? (y/n)
y
Waiting for instance to be created. It can take a few minutes.

Instance for gs://<some-bucket>/<some-run>/tensorboard has been created.
You can access it via following,
1. xprofiler connect -z <zone> -l gs://<some-bucket>/<some-run>/tensorboard -m ssh
2. [Experimental (supports smaller files, < 200mb)] https://<id>-dot-us-<region>.notebooks.googleusercontent.com.
Instance is hosted at xprof-<uuid> VM.

Open xprofiler Instance

Using Proxy (Only supports small captures, less than 10sec)

Users can open created instances using the link from create output. This path relies on a reverse proxy to expose the xprofiler backend. Users must have valid IAM permissions.

Note: Currently, This path can only support smaller trace files (<200 mb).

Using SSH Tunnel (Preferred for larger captures)

Users can connect to an instance by specifying a log_directory.

• Connect uses an SSH tunnel and users can open a localhost url from their browsers.

Note: -z (--zone) and -l (--log_directory) are mandatory arguments.

xprofiler connect -z $ZONE -l $GCS_PATH -m ssh

xprofiler instance can be accessed at http://localhost:6006.

List xprofiler Instances

To list the xprofiler instances, you will need to specify a zone. Users can optionally provide bucket information and/or VM instance names.

ZONE=us-central1-a

xprofiler list -z $ZONE

Note: The -z (--zones) flag is not required but is highly recommended. If a zone is not provided, the command can take longer to search for all relevant VM instances.

This will output something like the following if there are instances matching the list criteria:

Log_Directory                              URL                                                                  Name                                        Zone
-----------------------------------------  -------------------------------------------------------------------  ------------------------------------------  -------
gs://<some-bucket>/<some-run>/tensorboard  https://<id>-dot-us-<region>.notebooks.googleusercontent.com         xprof-97db0ee6-93f6-46d4-b4c4-6d024b34a99f  <zone>
gs://<some-bucket>/<some-run>/tensorboard  https://<id>-dot-us-<region>.notebooks.googleusercontent.com         xprof-ev86r7c5-3d09-xb9b-a8e5-a495f5996eef  <zone>

Note you can specify one or more GCS bucket paths and/or VM instance names to get any VMs associated with the criteria provided. This will list any VMs associated with the log directories or VM names specified. (See section below for more details.)

# Specifying one GCS path
xprofiler list -z $ZONE -l $GCS_PATH

# Specifying one VM instance name
xprofiler list -z $ZONE --vm-name $VM_NAME

Delete xprofiler Instance

To delete an instance, you'll need to specify either the GCS bucket paths or the VM instances' names. Specifying the zone is required.

# Delete by associated GCS path
xprofiler delete -z us-central1-b -l gs://<some-bucket>/<some-run>/tensorboard

Found 1 VM(s) to delete.
Log_Directory                              URL                                                                  Name                                        Zone
-----------------------------------------  -------------------------------------------------------------------  ------------------------------------------  -------
gs://<some-bucket>/<some-run>/tensorboard  https://<id>-dot-us-<region>.notebooks.googleusercontent.com         xprof-8187640b-e612-4c47-b4df-59a7fc86b253  <zone>

Do you want to continue to delete the VM `xprof-8187640b-e612-4c47-b4df-59a7fc86b253`?
Enter y/n: y
Will delete VM `xprof-8187640b-e612-4c47-b4df-59a7fc86b253`


# Delete by VM instance name
VM_NAME="xprof-8187640b-e612-4c47-b4df-59a7fc86b253"
xprofiler delete -z $ZONE --vm-name $VM_NAME

Capture Profile

Users can capture profiles programmatically or manually.

Prerequisite: Enable Collector

Users are required to enable the collector from their workloads following below steps.

Note: This is needed for both Programmatic and Manual captures.

# To enable for a jax workload
import jax
jax.profiler.start_server(9012)

# To enable for a pytorch workload
import torch_xla.debug.profiler as xp
server = xp.start_server(9012)

# To enable for tensorflow workload
import tensorflow.compat.v2 as tf2
tf2.profiler.experimental.server.start(9012)

Below links have some more information about the individual frameworks:

• JAX
• PyTorch

Programmatic Profile Capture

Users can capture traces from their workloads by marking their code paths. Programmatic capture is more deterministic and gives more control to users.

Note: The code snippets below assume that code in the earlier prerequisite section

JAX Profile Capture

jax.profiler.start_trace("gs://<some_bucket>/<some_run>")
# Code to profile
...
jax.profiler.stop_trace()

PyTorch Profile Capture

xp.trace_detached(f"localhost:{9012}", "gs://<some_bucket>/<some_run>", duration_ms=2000)

# Using StepTrace
for step, (input, label) in enumerate(loader):
  with xp.StepTrace('train_step', step_num=step):
    # code to trace
    ...

Alternatively, wrap individual parts of the code with xp.Trace:

# Using Trace
with xp.Trace('fwd_context'):
    # code to trace
    ...

TensorFlow Profile Capture

tf.profiler.experimental.start("gs://<some_bucket>/<some_run>")
for step in range(num_steps):
  # Creates a trace event for each training step with the step number
  with tf.profiler.experimental.Trace("Train", step_num=step):
    train_fn()
tf.profiler.experimental.stop()

Manual Profile Capture

Users can also trigger profile capture on target hosts. There are two methods to do this:

• Using the xprofiler capture command
  • For GCE workloads
  • For GKE workloads
• Using TensorBoard's UI

Profile Capture via TensorBoard UI

Users have the option to trigger a profile capture using TensorBoard's UI.

First, visit the proxy URL for a VM instance (created via xprofiler) to visit the TensorBoard UI. Which will bring you to one of two pages.

Scenario 1: GCS Has Profile Data

If the GCS log directory associated with the VM instance has profile data already available, you'll likely see a page similar to this with profile runs ready to view:

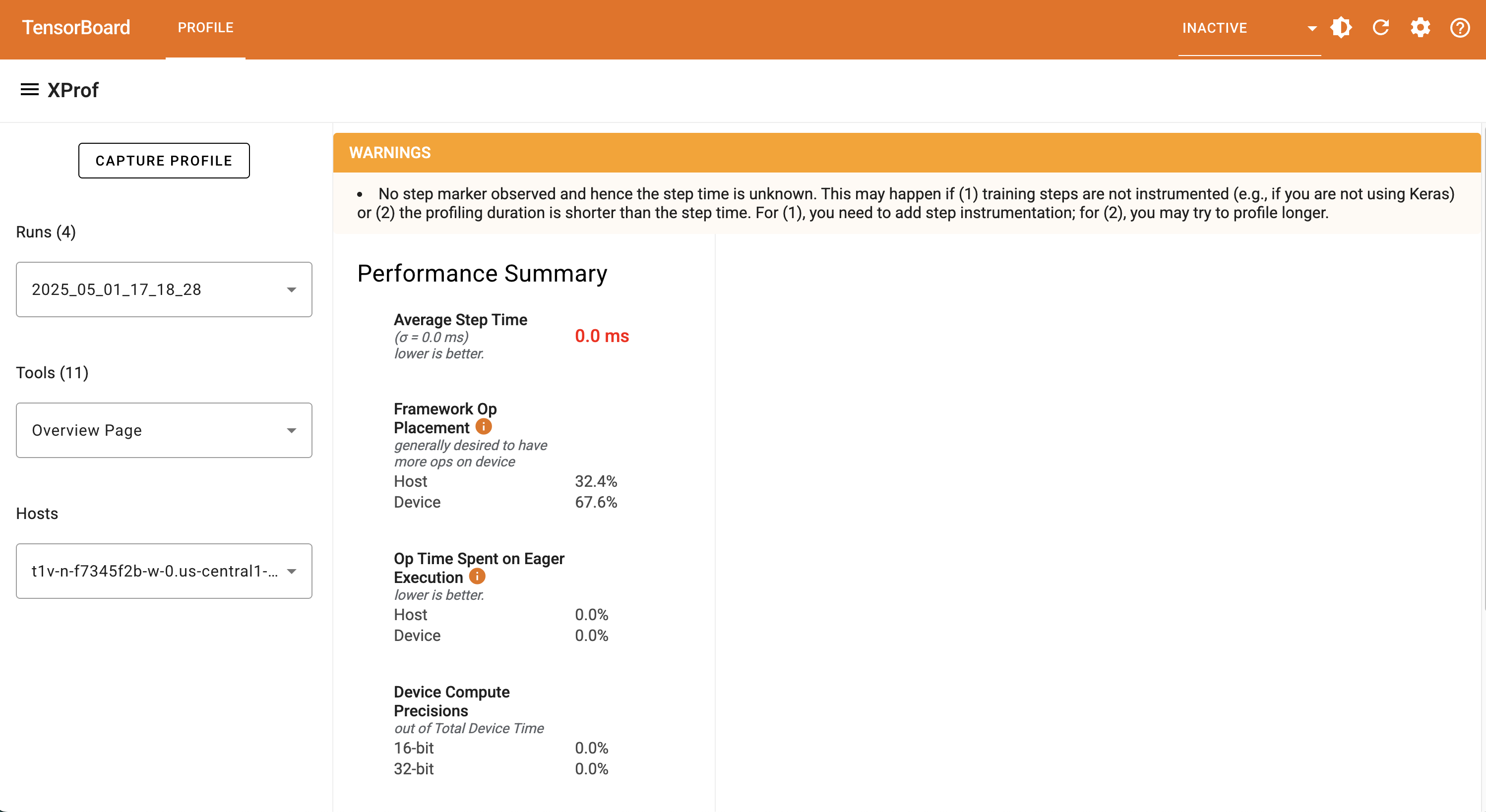

Notice the "CAPTURE PROFILE" button on the dashboard. You'll want to click that & proceed with the next section on completing this form to capture profile data.

Scenario 2: GCS Has No Profile Data

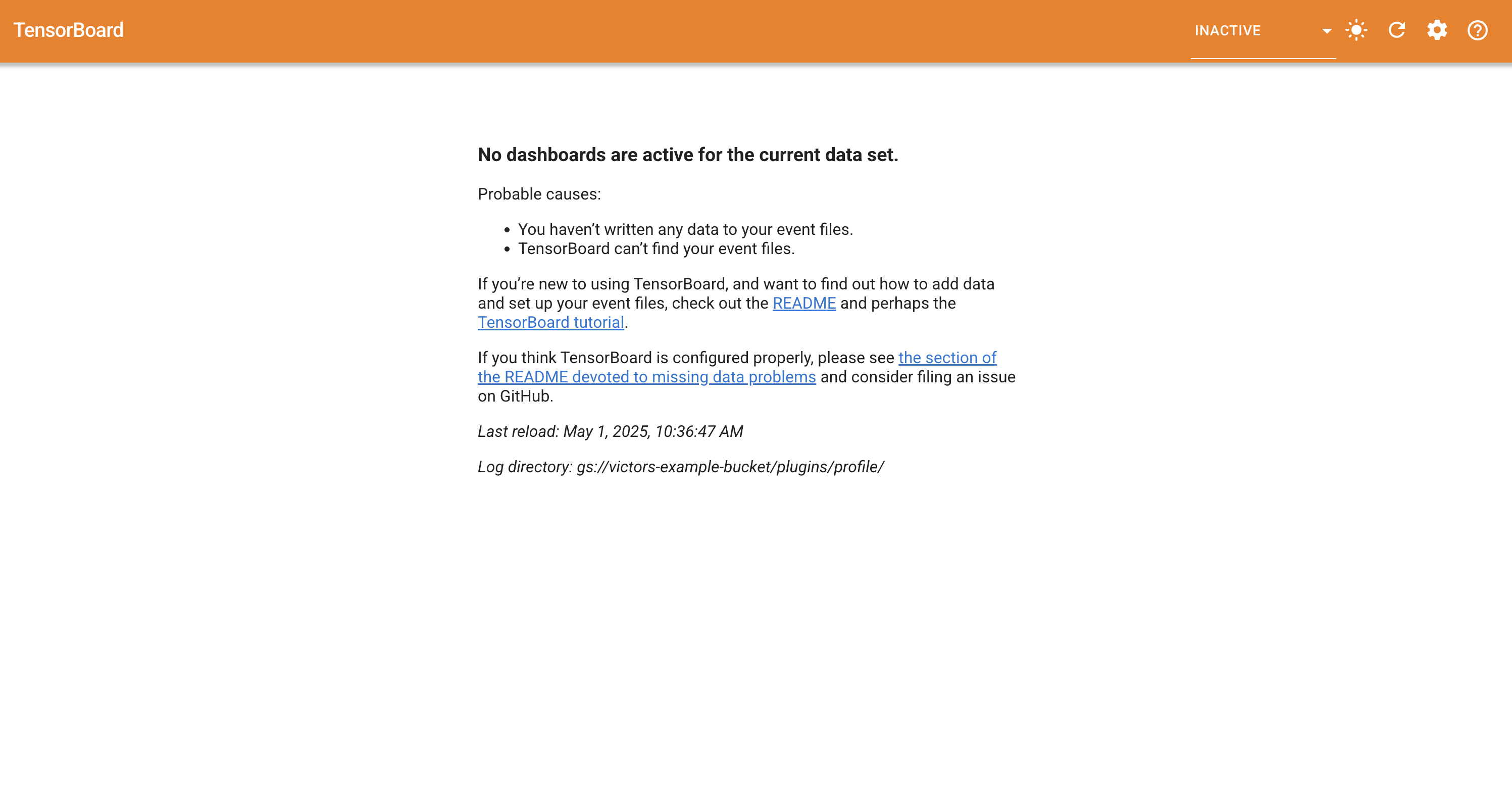

You may see a similar page to this one with no dashboards if the GCS log directory does not yet have any profile data:

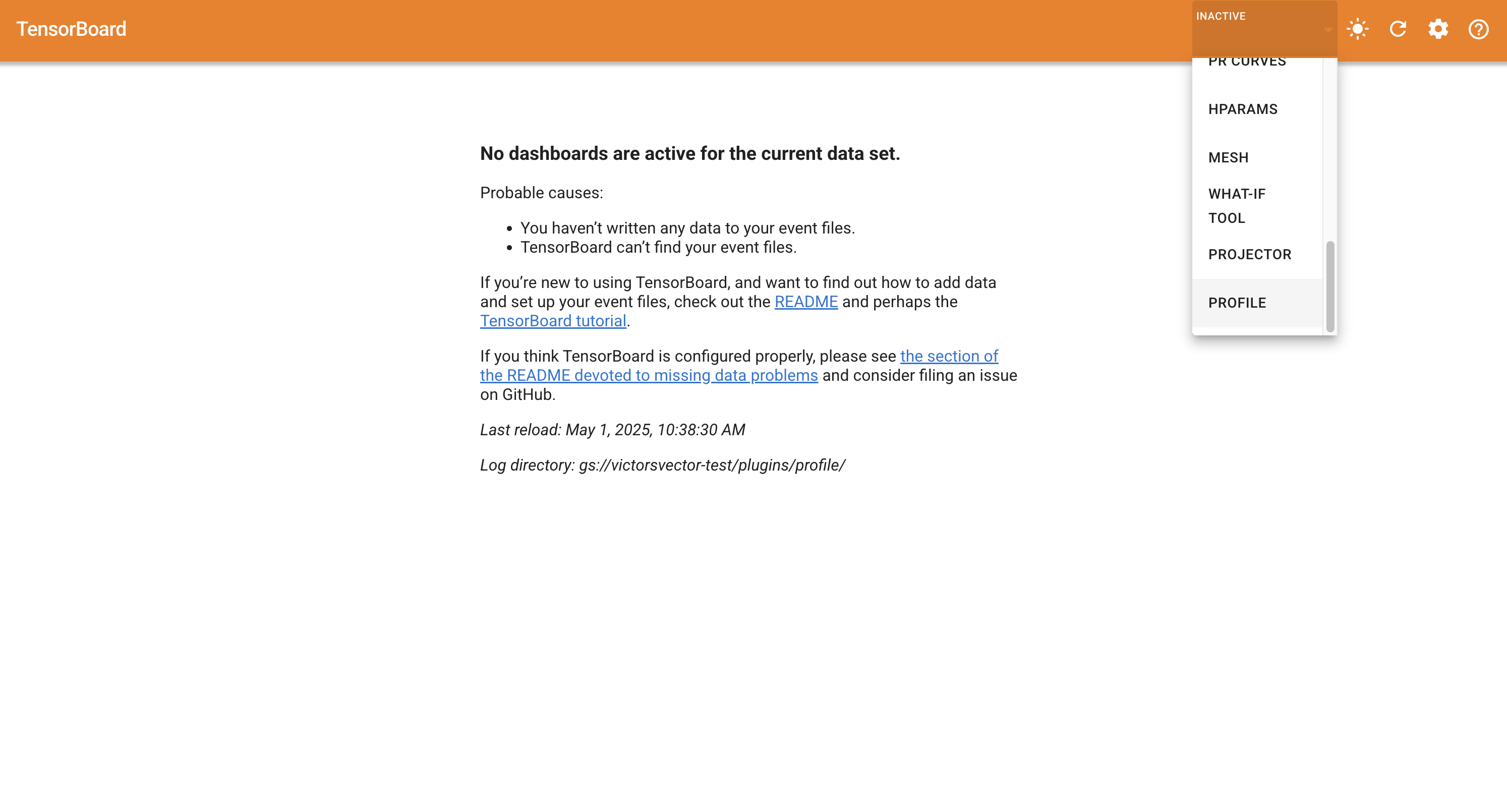

You will then need to select the profile tab:

You'll then see a page similar to this one with a "CAPTURE PROFILE" button:

You want to click the "CAPTURE PROFILE" button which will bring up a form to fill. Proceed to the next section for details in completing this form to capture profile data.

Completing Form for Profile Capture

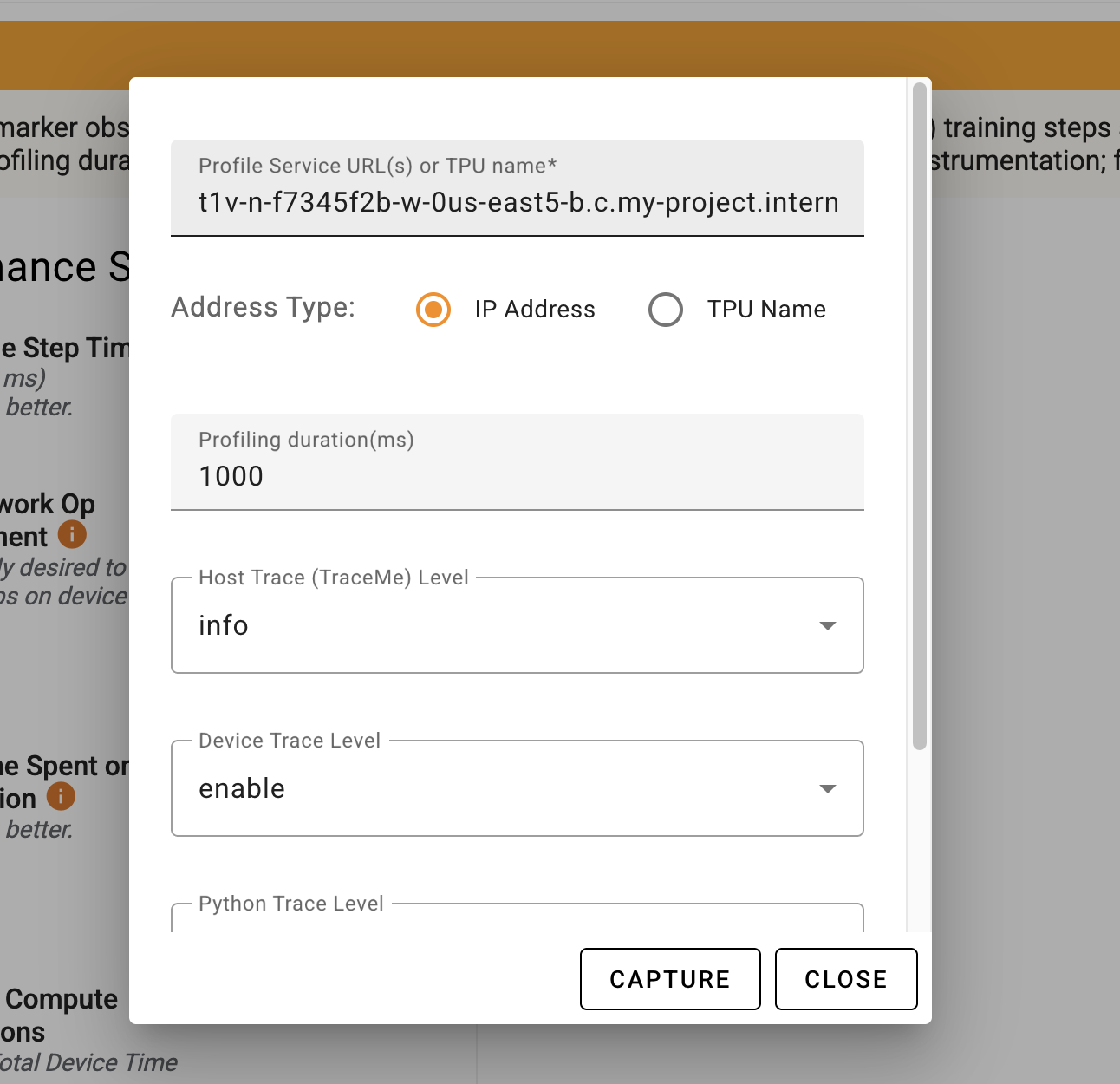

In either case from above, you should see a similar form to fill to capture profile data:

You will need to minimally provide the "Profile Service URL(s)" for the TPU VM instance.

Note: The instructions refer to the TPU VM that is running the workload to profile and NOT the xprofiler VM instance.

You will need the full hostname for the TPU & port number with the following format:

<TPU_VM_HOSTNAME>.<ZONE>.c.<GCP_PROJECT_NAME>.internal:<PORT_NUMBER>

• TPU_VM_HOSTNAME: This is different from the TPU name and refers to the host that the workload is running on. You can retrieve the hostname using gcloud by providing the TPU VM name and TPU's the zone: gcloud compute tpus tpu-vm ssh $TPU_NAME --zone=$ZONE --command="hostname"
• ZONE: This is the zone of the TPU VM. Note that it is *NOT necessarily the same as the xprofiler VM instance that is displaying TensorBoard.
• GCP_PROJECT_NAME: This is the project name for the TPU VM. Note that it is *NOT necessarily the same as the xprofiler VM instance that is displaying TensorBoard. However, it likely will need to be since having the TPU in a different project will likely lead to permission issues, preventing profile capture.
• PORT_NUMBER: This is the port that was set when starting the profile server in the relevant code. See earlier prerequisite section.

For example, your string will look similar to this:

t1v-n-g8675e3i-w-0.us-east5-b.c.my-project.internal:9012

You can then adjust any of the other settings you care to modify and click "CAPTURE".

You will see a loading animation and then a message at the bottom of the screen.

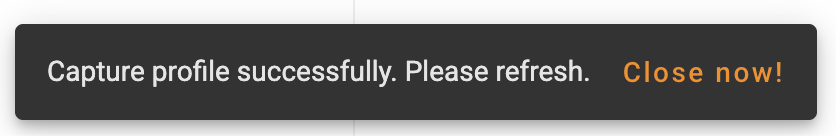

If successful, you will see a message similar to this:

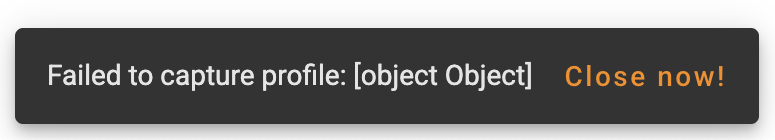

If something went wrong you might see something similar to this:

You can attempt the capture again, ensuring your settings in the form are correct. You may also need to confirm the TPU workload is running and properly configured for profiling.

Note: After a successful capture, you might need to refresh the dashboard. You can hit the refresh icon for a single refresh or go to the settings menu (the gear icon) and set "Reload data" automatically.

Profile Capture via xprofiler: GCE

For JAX, xprofiler requires the tensorboard-plugin-profile package and must also be available on target VMs.

Note: xprofiler uses gsutil to move files to GCS bucket from target VM. VMs must have gcloud pre-installed.

# Trigger capture profile
# Framework can be jax or pytorch
xprofiler capture \
  -z <zone> \
  -l gs://<some-bucket>/<some-run> \
  -f jax \
  -n vm_name1 vm_name2 vm_name3 \
  -d 2000 # duration in ms

Starting profile capture on host vm_name1.
Profile saved to gs://<some-bucket>/<some-run>/tensorboard and session id is session_2025_04_03_18_13_49.

Starting profile capture on host vm_name2.
Profile saved to gs://<some-bucket>/<some-run>/tensorboard and session id is session_2025_04_03_18_13_49.

Profile Capture via xprofiler: GKE

For GKE, users are required to setup kubectl and cluster context on their machines. (See details on setting up kubectl.)

gcloud container clusters get-credentials <cluster_name> --region=<region>

After setting up credentials, users can verify the current context:

kubectl config current-context
gke_<project_id>_<region>_<cluster_name>

Users can then get a mapping between pods and nodes using the kubectl get pods command:

$ kubectl get pods -o wide| awk '{print $1"\t\t"$7}'

For GKE, users can then pass a list of pods to xprofiler capture command to initiate profile capture.

# Trigger capture profile
# Framework can be jax or pytorch
xprofiler capture \
  -z <zone> \
  -o gke \
  -l gs://<some-bucket>/<some-run> \
  -f jax
  -n pod_1 pod_2 pod_3 \
  -d 2000 # duration in ms

Starting profile capture on pod_1.
Profile saved to gs://<some-bucket>/<some-run>/tensorboard and session id is session_2025_04_03_18_13_49.

Starting profile capture on pod_2.
Profile saved to gs://<some-bucket>/<some-run>/tensorboard and session id is session_2025_04_03_18_13_49.

Details on xprofiler

Main Command: xprofiler

The xprofiler command has additional subcommands that can be invoked to create VM instances, list VM instances, delete instances, etc.

However, the main xprofiler command has some additional options without invoking a subcommand.

xprofiler --help

Gives additional information about using the command including flag options and available subcommands. Also can be called with xprofiler -h.

Note: Each subcommand has a -h (--help) flag that can give information about that specific subcommand. For example: xprofiler list -h

Subcommand: xprofiler create

This command is used to create a new VM instance for xprofiler to run with a given profile log directory GCS path.

xprofiler create will return an error if the machine type given is not found in the provided zone. Note that the error message will include a gcloud command that can be used to determine a zone with the given machine type.

Usage details:

xprofiler create
  [--help]
  --log-directory GS_PATH
  --zone ZONE_NAME
  [--vm-name VM_NAME]
  [--machine-type MACHINE_TYPE]
  [--auto-delete-on-failure-off]
  [--verbose]

xprofiler create --help

This provides the basic usage guide for the xprofiler create subcommand.

xprofiler create --auto-delete-on-failure-off

The create command will automatically delete failed VM instances created by the xprofiler tool. This is to ensure that a malformed VM does not persist if it can't be fully utilized by xprofiler.

However, it can optionally turn off automatic deletion using the --auto-delete-on-failure-off flag. This can be particularly useful in debugging issues when creating VMs.

Subcommand: xprofiler list

This command is used to list a VM instances created by the xprofiler tool.

Usage details:

xprofiler list
  [--help]
  [--zones ZONE_NAME [ZONE_NAME ...]]
  [--log-directory GS_PATH [GS_PATH ...]]
  [--vm-name VM_NAME [VM_NAME ...]]
  [--filter FILTER_NAME [FILTER_NAME ...]]
  [--verbose]

xprofiler list --help

This provides the basic usage guide for the xprofiler list subcommand.

xprofiler list --zones

The list subcommand can optionally take a -z (--zones) flag to specify which zones to consider for listing VMs.

# Listing all xprofiler VMs in us-central1-a
xprofiler list -z us-central1-a

# Listing all xprofiler VMs in us-east5-a and us-central1-a
xprofiler list -z us-east5-a us-central1-a

If no value for the zones is provided, then xprofiler list will search across all zones with any other matching criteria in mind. This however, can potentially take significantly more time so it is recommended to specify the zone(s) explicitly.

Optionally specifying log directories and/or VM names

Users optionally can specify one or more log directories (GCS paths) and/or VM names. This can be done with the -l (--log-directory) flag for log directories and with the -n (--vm-name) flag for VM instance names.

When specifying multiple criteria, any matching VM will be listed.

Examples:

# List VMs that match either GCS path
xprofiler list -l gs://bucket0/top-dir gs://bucket1/top-dir


# List VMs that match either VM name
xprofiler list -n my-vm-one my-vm-two


# List VMs that match any of the GCS paths or VM names
xprofiler list \
  -l gs://bucket0/top-dir gs://bucket1/top-dir \
  -n my-vm-one my-vm-two

Subcommand: xprofiler delete

This command is used to delete VM instances, focused on those created by the xprofiler tool.

Usage details:

xprofiler delete
  [--help]
  --zone ZONE_NAME
  [--log-directory GS_PATH [GS_PATH ...]]
  [--vm-name VM_NAME [VM_NAME ...]]
  [--verbose]

xprofiler delete --help

This provides the basic usage guide for the xprofiler delete subcommand.

Subcommand: xprofiler capture

Usage details:

xprofiler capture
  [--help]
  --log-directory GS_PATH
  --zone ZONE_NAME
  --hosts HOST_NAME [HOST_NAME ...]
  --framework FRAMEWORK
  [--orchestrator ORCHESTRATOR]
  [--duration DURATION]
  [--port LOCAL_PORT]
  [--verbose]

xprofiler capture --help

This provides the basic usage guide for the xprofiler capture subcommand.

xprofiler connect --help

xprofiler connect
  [--help]
  --log-directory GS_PATH
  --zone ZONE_NAME
  [--mode MODE]
  [--port LOCAL_PORT]
  [--host-port HOST_PORT]
  [--disconnect]
  [--verbose]

xprofiler connect --help

This provides the basic usage guide for the xprofiler connect subcommand.
