AyresWiFiManager – ESP32 WiFi Manager with Captive Portal

AyresWiFiManager is a library for ESP32 that allows configuring WiFi credentials and custom parameters through a local captive portal – ideal for IoT environments like alarms, automation, and smart devices.

Compatible with PlatformIO and Arduino IDE.
Open source, modular, and easy to integrate into any ESP32 project.

---

📂 Project Structure

.
├── lib/
│   └── wifimanager/
│       ├── wifimanager.cpp
│       └── wifimanager.h
├── data/
│   └── wifimanager/
│       ├── index.html
│       ├── success.html
│       └── error.html
├── src/
│   └── main.cpp
├── platformio.ini
└── README_en.md

---

🧩 Main Features

• 🔌 Auto-connects to known WiFi networks
• 🌐 Local captive portal when no network is configured
• 💾 HTML/CSS/JS served from LittleFS
• ⚙️ Supports custom parameters (e.g., MQTT, tokens, etc.)
• 🧰 Compatible with PlatformIO and Arduino IDE
• 📲 Ideal for headless systems (no screen required)

---

🗂️ Library Package Structure

/wifimanager-esp32
├── src/
│   ├── WifiManager.cpp
│   └── WifiManager.h
├── data/
│   └── wifimanager/
│       ├── index.html
│       ├── style.css
│       └── script.js
├── examples/
│   ├── ejemplo_basico/
│   │   └── ejemplo_basico.ino
│   └── ejemplo_platformio/
│       └── ejemplo.cpp
├── library.json
├── library.properties
├── README_en.md
└── LICENSE

---

🛠️ Installation

🔷 PlatformIO

1. Add this to your platformio.ini:

   lib_deps = https://github.com/ayresnet/wifimanager-esp32

2. Upload web files from /data to ESP32 flash:

   pio run --target uploadfs

3. Flash your main code:

   pio run --target upload

---

🟢 Arduino IDE

1. Download this repo as ZIP and add it via:
   Sketch → Include Library → Add .ZIP Library.

2. Install the plugin ESP32 Sketch Data Upload to upload HTML files to the device.

3. Place your web portal files in:

   /data/wifimanager/


4. Upload them via:
   Tools → ESP32 Sketch Data Upload

---

🧪 Basic Example

#include <WifiManager.h>
#include <LittleFS.h>
#include <WiFi.h>

WifiManager wifiManager;

void setup() {
  Serial.begin(115200);
  delay(200);

  // Initialize LittleFS (required to read wifi.json)
  if (!LittleFS.begin()) {
    Serial.println("❌ Failed to mount LittleFS");
    return;
  }

  // Set the path where the captive portal HTML files are stored
  wifiManager.setHtmlPathPrefix("/wifimanager/");

  // Start WiFiManager (loads configuration from wifi.json if it exists)
  wifiManager.begin();

  // If wifi.json doesn't exist, launch the captive portal and halt execution
  if (!LittleFS.exists("/wifi.json")) {
    Serial.println("⚠️ wifi.json not found → starting captive portal");
    wifiManager.run();  // AP mode – stays here until user configures
    return;
  }

  // Attempt to connect using stored credentials
  wifiManager.run();

  // Check if the connection was successful
  if (!wifiManager.isConnected()) {
    Serial.println("❌ Failed to connect to WiFi");
    return;
  }

  Serial.print("✅ Connected to: ");
  Serial.println(WiFi.SSID());
}

void loop() {
  wifiManager.update();  // keeps connection alive and handles events
}

---

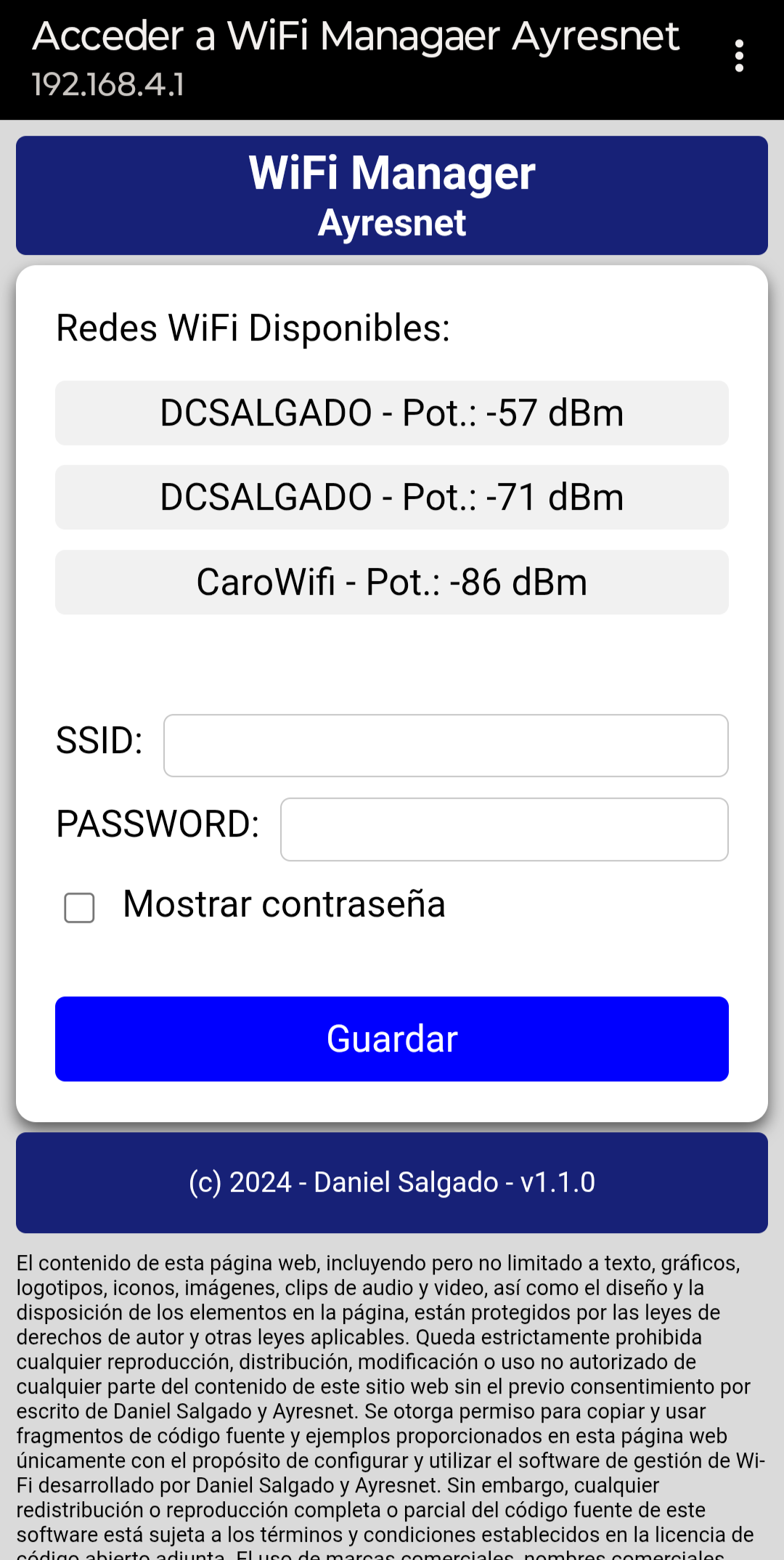

🌐 Captive Portal Preview

---

📝 License

This project is licensed under the MIT License – feel free to use, modify, and distribute it even for commercial use.

---

🤝 Contributions

Contributions are welcome!
Open an Issue or submit a Pull Request to add improvements or fixes.

---

📄 Prefer to read this in Spanish? Visit README.es.md

---

Created by Daniel Cristian Salgado – AyresNet.
