EBJR: Energy-Based Joint Reasoning for Adaptive Inference (BMVC2021)

This notebook contains the implmenetation of the paper 'EBJR: Energy-Based Joint Reasoning for Adaptive Inference' published in BMVC2021.

Link to paper on arXiv: https://arxiv.org/abs/2110.10343

Link to Huawei's AI Gallery Notebook: https://developer.huaweicloud.com/develop/aigallery/notebook/detail?id=58b799a0-5cfc-4c2e-8b9b-440bb2315264

Introduction

- Smaller (shallower) models -> lower prediction accuracy, but faster

- Larger (deeper) models -> higher prediction accuracy, but slower

- Combine Small (called Student) + Large (called Teacher)

- Majority processed by Student -> high accuracy and/or low latency

- Joint inference via an energy-based Router: to decide which model to use for each input data

- Inference-time trade-off between latency and accuracy

- Applicable to any pre-trained model, and different computer vision tasks

Requirements

In order to run this code, torch==1.7.1 and torchvision==0.8.2 packages are required, which can be installed using the following commands:

!pip install torch==1.7.1
!pip install torchvision==0.8.2

Usage

Download Code

!wget https://vbdai-notebooks.obs.cn-north-4.myhuaweicloud.com/ebjr/code.zip
!unzip -qo code.zip

EBJR over CIFAR-10 with DenseNet-52-6 (as Student) and DenseNet-64-12 (as Teacher):

!python ebjr.py --evaluate --dataset cifar10 --arch densenet --depth 52 --growthRate 6 --tarch densenet --tdepth 64 --tgrowthRate 12 --resume checkpoints/cifar10/densenet-bc-52-6/model_best.pth.tar --tresume checkpoints/cifar10/densenet-bc-64-12/model_best.pth.tar --router_threshold 2.46

==> Preparing dataset cifar10
==> creating model 'densenet'
==> creating teacher model 'densenet'
    Total params: 0.07M
    Total teacher params: 0.37M
==> Resuming from checkpoint..
---------------------
Student:
Params: 0.07M
FLOPs (10^8): 0.54754784
---------------------
Teacher:
Params: 0.37M
FLOPs (10^8): 2.92380404

Evaluation only
�[KProcessing |################################| (10000/10000) Data: 0.001s | Batch: 0.012s | Total: 0:02:02 | ETA: 0:00:01 | top1:  94.7700 | top5:  99.8000
---------------------
#Samples: 10000
Samples Processed by Student (%): 72.03
Samples Processed by Teacher (%): 27.969999999999995
Accuracy (%): 94.77
FLOPs (10^8): 1.3653358299879998
Average Latency (s): 0.010832044768333436
�[?25h

EBJR over CIFAR-100 with DenseNet-58-6 (as Student) and DenseNet-88-8 (as Teacher):

!python ebjr.py --evaluate --dataset cifar100 --arch densenet --depth 58 --growthRate 6 --tarch densenet --tdepth 88 --tgrowthRate 8 --resume checkpoints/cifar100/densenet-bc-58-6/model_best.pth.tar --tresume checkpoints/cifar100/densenet-bc-88-8/model_best.pth.tar --router_threshold 4.6195

==> Preparing dataset cifar100
==> creating model 'densenet'
==> creating teacher model 'densenet'
    Total params: 0.09M
    Total teacher params: 0.30M
==> Resuming from checkpoint..
---------------------
Student:
Params: 0.09M
FLOPs (10^8): 0.64281872
---------------------
Teacher:
Params: 0.30M
FLOPs (10^8): 2.14001928

Evaluation only
�[KProcessing |################################| (10000/10000) Data: 0.001s | Batch: 0.016s | Total: 0:02:40 | ETA: 0:00:01 | top1:  74.7900 | top5:  93.6900
---------------------
#Samples: 10000
Samples Processed by Student (%): 56.730000000000004
Samples Processed by Teacher (%): 43.269999999999996
Accuracy (%): 74.79
FLOPs (10^8): 1.568805062456
Average Latency (s): 0.01464376654624939
�[?25h

Arguments

- 'dataset': cifar10, cifar100, or imagenet

- 'arch': the network architecture for Student

- 'depth': the model depth for Student

- 'growthRate': the growth rate for for Student (if tarch is resnet or densenet)

- 'tarch': the network architecture for Teacher

- 'tdepth': the model depth for Teacher (if tarch is resnet or densenet)

- 'tgrowthRate': the growth rate for for Teacher (if arch is densenet)

- 'resume': the checkpoint path for Student

- 'tresume': the checkpoint path for Teacher

- 'router_threshold': the router threshold

Results

Image Classification

- Average of ~2X less FLOPs compared to Teacher

- Average of ~1.5X less latency compared to Teacher

Trade-off curves compared with SOTA

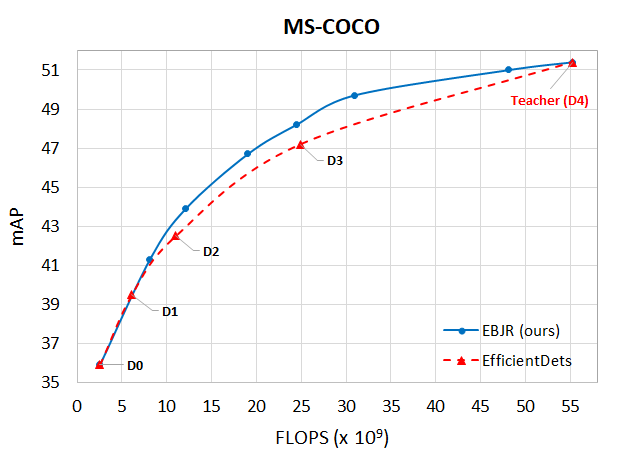

Object Detection

With EfficientDet-D0 (as Student) and EfficientDet-D4 (as Teacher)

Specialized EBJR

- Assumption: majority of data (e.g., 70%) belongs to a small subset of popular classes

- Train and specialize the Student model targeting specific/popular classes

- Highly accurate Student predictions for the majority of input data

Demo video for Specialized EBJR

The following video demonstrates the Specialized EBJR with Top-50+1 scenario over OID dataset.

%%HTML
<video width="1280" controls>
    <source src="https://vbdai-notebooks.obs.cn-north-4.myhuaweicloud.com/ebjr/Demo.mp4" type="video/mp4">
</video>
